JVC AV-32D800
Description

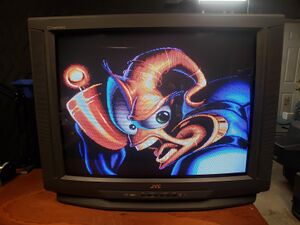

The JVC AV-32D800 is a 32-inch consumer CRT television released in 1999 as part of JVC's popular D-Series line. This is the premium D-Series model, using the early GR2 chassis with the JVC JCC1007A jungle IC, and including additional features like TV Guide Plus and VCR Plus+ built-in.
The AV-32D800 features component video input and uses either the Hitachi A80LJF30X tube (default) or the Panasonic M80JUA061X (marked with "A" beside the serial number).
Technical Details
Chassis
The AV-32D800 uses the GR2 chassis, featuring the JVC JCC1007A jungle IC. This early-era chassis is RGB moddable and has minimal raster bloom compared to later D-Series chassis.
The 2-line digital comb filter provides quality composite and S-Video processing. This is the original D-Series comb filter before the upgrade to 3-line in 2001 models.
Premium Features
The D800 series is distinguished from the D500/D200 by:
- TV Guide Plus - On-screen program guide
- VCR Plus+ - One-touch recording programming
Tube Identification
Check the letter beside the serial number on the model tag:
- (no letter) = Hitachi A80LJF30X
- A = Panasonic M80JUA061X
Both tubes are high-quality and perform well for retro gaming applications.
Audio
The AV-32D800 uses a 5W × 2 stereo power amplifier with BBE Sound Enhancement processing.
Red Push Fix
Early-era D-Series (Dx00) may exhibit oversaturated reds. To correct this in the service menu:
- Navigate to DEMO AX RY → Set to 0
- Navigate to CMP D AX R → Set to 0
Related Models
- JVC AV-27D800 - 27" counterpart
- JVC AV-36D800 - 36" counterpart
- JVC AV-32D500 - Mid-tier D-Series
- JVC AV-32D200 - Entry-level D-Series
