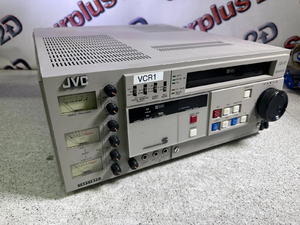

JVC BR-S611U
AV device › VTR
Overview
Brand
JVC
Model
BR-S611U
Market
USA
Type
VTR
Format family
VHS
MSRP
$3,900.00
AV system
NTSC
Related
Victor BR-S611
BR-S811U
ECID
EC4509
Format Compatibility
Plays
VHS, S-VHS
Records
VHS, S-VHS
Inputs
Rear
Y/C629 In
1×Y/C DUB color-under (Hirose 7-pin DUB)
Y: 1.0 Vp-p, C: 0.9 Vp-p (EIA color bar), 75Ω. 629 kHz color-under for improved chroma in multi-generation dubbing.
Y/C358 In
1×S-Video (Y/C) (Hirose 7-pin DUB)
Y: 1.0 Vp-p, C: 0.286 Vp-p (burst), 75Ω. Standard 3.58 MHz NTSC S-Video.
Time Code In
1×Analog mono (BNC)
SMPTE LTC input. Requires SA-F911U Interface Unit for time code functions.
Normal Audio CH-2 In
1×Analog mono (XLR, Mono audio)
-6/0/+4 dBs selectable, 10kΩ/600Ω balanced. Dolby NR available. Audio dubbing capable.
Line Video In
1×Composite (CVBS) (BNC)
1.0 Vp-p, 75Ω unbalanced
External Sync In
1×Composite (CVBS) (BNC)
Composite sync or composite video signal input. TBC compatible.
Hi-Fi Audio CH-1 In
1×Analog mono (XLR, Mono audio)
-6/0/+4 dBs selectable, 10kΩ/600Ω balanced. 90dB dynamic range, 20Hz-20kHz response.
Normal Audio CH-1 In
1×Analog mono (XLR, Mono audio)
-6/0/+4 dBs selectable, 10kΩ/600Ω balanced. Dolby NR available.
Hi-Fi Audio CH-2 In
1×Analog mono (XLR, Mono audio)
-6/0/+4 dBs selectable, 10kΩ/600Ω balanced. 90dB dynamic range, 20Hz-20kHz response.
Front
Mic In
1×Analog mono (6.35mm TRS, Mono audio)
Outputs
Rear
Time Code Out
1×Analog mono (BNC)
SMPTE LTC output. Requires SA-F911U Interface Unit for time code functions.
Video Out
2×Composite (CVBS) (BNC)
1.0 Vp-p, 75Ω unbalanced
Hi-Fi Audio CH-1 Out
1×Analog mono (XLR)
-6/0/+4 dBs selectable, low impedance balanced
Hi-Fi Audio CH-2 Out
1×Analog mono (XLR)
-6/0/+4 dBs selectable, low impedance balanced
Y/C Monitor Out
1×S-Video (Y/C) (Hirose 7-pin DUB)
Separate Y/C monitor output
RF Out
1×RF (BNC)
For external dropout compensator (DOC)
Normal Audio CH-2 Out
1×Analog mono (XLR)
-6/0/+4 dBs selectable, low impedance balanced
Y/C358 Out
1×S-Video (Y/C) (Hirose 7-pin DUB)
Y: 1.0 Vp-p, C: 0.286 Vp-p (burst), 75Ω. Standard 3.58 MHz NTSC S-Video.
Y/C629 Out
1×Y/C DUB color-under (Hirose 7-pin DUB)
Y: 1.0 Vp-p, C: 0.9 Vp-p (EIA color bar), 75Ω. 629 kHz color-under for improved chroma in multi-generation dubbing.
Normal Audio CH-1 Out
1×Analog mono (XLR)
-6/0/+4 dBs selectable, low impedance balanced
Front
Headphones
1×Analog stereo (6.35mm TRS)
Adjustable output level. Selectable monitor: CH-1/Mix/CH-2.
Features
Chroma enhancer (Faroudja Laboratories), improved crosstalk cancellation circuitry, TS (Tape Stabilizing) head drum, Hi-Fi VHS stereo sound (90dB dynamic range), XLR balanced audio I/O, 45-pin parallel remote connector, dual concentric JOG/SHUTTLE control, SMPTE LTC time code support, half-loading mechanism for CTL pulse reading in FF/REW, self-diagnostic warning system (codes 01-73), hour meter (up to 1000 hours), automatic head cleaning, timer recording/playback, audio dubbing on normal CH-2, Dolby NR on normal audio track, 19-inch EIA rack mountable, front panel test points
Dimensions
H × W × D
7.4 in × 16.9 in × 20.2 in
Weight
50.7 lb22.997 kg <br /> / 22.997 kg50.7 lb <br />
Power
Voltage
120–120V
AC frequency
50Hz, 60Hz
Power
130W (avg) / 140W (max)
Accessories
Parts
Archival Links
Manufacturer
JVC
JVC
JVC
Documents
Contribute

Description

The JVC BR-S611U is a professional S-VHS recorder/player designed as an edit feeder deck. Part of JVC's "11 Series" of professional S-VHS equipment, the BR-S611U is essentially the same as the BR-S811U editing recorder, but without insert editing functions. This makes it the ideal companion to the BR-S811U as a source machine in an editing system.

JVC, as the inventor of the S-VHS format, focused engineering efforts on picture quality for the 11 Series, ensuring the S-VHS signal retains its integrity and resolution through fifth-generation dubs. Key innovations include a chroma enhancer developed by Faroudja Laboratories that restores chroma bandwidth lost during recording and playback, improved crosstalk cancellation circuitry that prevents vertical color blur, and a precision-machined TS (Tape Stabilizing) head drum that eliminates "head knocking" for rock-steady pictures.

The BR-S611U features both composite video and separate Y/C signal inputs/outputs via 7-pin connectors supporting Y/C358 (standard 3.58 MHz S-Video) and Y/C629 (629 kHz color-under for improved chroma response in multi-generation dubbing). Professional-standard XLR balanced audio connectors provide independent inputs and outputs for all four audio channels (Hi-Fi stereo and normal stereo), with selectable +4dB, 0dB, and -6dB levels.

The deck can be integrated into editing systems using the 45-pin parallel remote connector with JVC editing controllers such as the RM-86U or RM-G810U, or via 9-pin serial control using the optional SA-F911U Interface Unit with built-in time code generator/reader for LTC-based editing. The system supports mixed-format editing with S-VHS, VHS, 3/4" U-matic, or MII decks.
