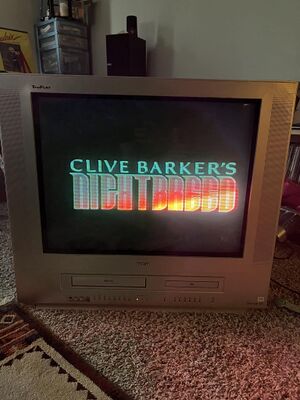

The RCA 24F501TDV is a 24-inch TruFlat TV/DVD/VCR combination unit featuring a built-in DVD player with mp3/JPEG/WMA support and 4-head stereo Hi-Fi VHS deck. Manufactured by TTE Technology, Inc.

Features

TruFlat picture tube (reduces glare by over 60%)
2-line analog comb filter
Wide Band Video Amplifier
V-Chip parental controls
AVL audio leveler
Sleep and wake timers
MTS Stereo with SAP, Surround sound
2 speakers, 1.5W × 2
Picture presets: 3 + Personal
Multi-language OSD support
Finish: Silver Diamond

DVD Features

Built-in DVD player with mp3, JPEG, and WMA compatibility
Compatible with CD, CD-R, CD-RW
Dolby Digital and DTS pass-through (coaxial and optical)
Slow motion speeds: 1/7x to 1/2x
Repeat & Audio A-B Repeat
Zoom function, Chapter advance and scan

VCR Features

4-Head Stereo Hi-Fi VHS deck
VHS HQ
8-event/1-month programmable timer
Equalizer function for audio CDs

RGB Mod

RGB mod capability for this model is currently unknown.

@@ Line 1: / Line 1: @@
-The '''RCA 24F501TDV''' is a 24-inch TruFlat TV/DVD/VCR combination unit featuring a built-in DVD player with mp3/JPEG/WMA support and 4-head stereo Hi-Fi VHS deck. Manufactured by TTE Technology, Inc.
 {{CRT model
 |brand=RCA
 |model_code=24F501TDV
+|series=TruFlat
 |crt_type=TV
+|form_factor=Standard
+|built_in_devices=VCR, DVD
+|image_main=RCA 24F501TDV front.jpg
 |screen_size_in=24
 |aspect_ratio=4:3
-|tube_type=TruFlat
-|standards_semantic=NTSC
-|series=TruFlat
-|remote_control=076ROHG010
 |height=19 in
 |width=26 in
 |depth=25.5 in
 |weight=88.2 lb
+|tube_type=TruFlat
+|remote_control=076ROHG010
+|speaker_type=Stereo
+|speaker_watts=1.5W × 2
+|av_system=NTSC
+|tuner_system=NTSC-M
+|frequency=60Hz
+|standards_semantic=NTSC
+|voltage_min=120
+|voltage_max=120
+}}
+{{CRT voltage range
+|voltage_min=120
+|voltage_max=120
 }}
-== Inputs ==
 {{CRT input
+|label=ANT
 |signal=RF
 |connector=RF (F-type)
 |count=1
+|audio=None
 |location=rear
+|notes=Antenna/cable input for TV tuner
 }}
 {{CRT input
+|label=VIDEO
 |signal=Composite (CVBS)
 |connector=RCA (connector)
 |count=1
+|audio=Stereo
+|audio_connector=RCA (connector)
+|location=rear
+|notes=Rear composite video input with L/R audio
+}}
+{{CRT input
+|label=VIDEO
+|signal=S-Video (Y/C)
+|connector=Mini-DIN-4
+|count=1
+|audio_shared_with=VIDEO
+|location=rear
+|notes=Rear S-Video input shares audio with composite VIDEO input
+}}
+{{CRT input
+|label=FRONT
+|signal=Composite (CVBS)
+|connector=RCA (connector)
+|count=1
+|audio=Stereo
+|audio_connector=RCA (connector)
 |location=front
+|notes=Front panel composite video input with L/R audio
 }}
-{{CRT input
+{{CRT output
+|label=Monitor Out
+|output_type=AV
 |signal=Composite (CVBS)
 |connector=RCA (connector)
 |count=1
 |location=rear
+|notes=Composite video output with fixed-level stereo audio for recording or external display
 }}
-{{CRT input
+{{CRT output
-|signal=S-Video (Y/C)
+|label=Digital Audio
-|connector=Mini-DIN-4
+|output_type=Audio
+|signal=S/PDIF (coaxial)
+|connector=RCA (connector)
+|count=1
+|location=rear
+|notes=Coaxial digital audio output for Dolby Digital/DTS passthrough from DVD
+}}
+{{CRT output
+|label=Digital Audio
+|output_type=Audio
+|signal=S/PDIF (optical)
+|connector=TOSLINK
 |count=1
 |location=rear
+|notes=Optical digital audio output for Dolby Digital/DTS passthrough from DVD
+}}
+{{CRT output
+|label=Headphone
+|output_type=Audio
+|signal=Analog stereo
+|connector=3.5mm TRS
+|count=1
+|location=front
+|notes=Headphone output jack
 }}
+{{CRT link
+|link_type=Retailer
+|link_source=NewEgg
+|link_url=https://www.newegg.com/rca-24f501tdv-crt-tv/p/N82E16824206024
+}}
+The '''RCA 24F501TDV''' is a 24-inch TruFlat TV/DVD/VCR combination unit featuring a built-in DVD player with mp3/JPEG/WMA support and 4-head stereo Hi-Fi VHS deck. Manufactured by TTE Technology, Inc.
-== Outputs ==
-* Composite video/audio output (rear, fixed audio)
-* Coaxial digital audio output (rear)
-* Optical digital audio output (rear)
-* Headphone jack (front)
 == Features ==
@@ Line 79: / Line 151: @@
 RGB mod capability for this model is currently unknown.
-== Archival Links ==
-{{CRT link
-|link_type=Database
-|link_source=CRT Database
-|link_url=https://crtdatabase.com/crts/rca/rca-24f501tdv
-}}
-{{CRT link
-|link_type=Retailer
-|link_source=NewEgg
-|link_url=https://www.newegg.com/rca-24f501tdv-crt-tv/p/N82E16824206024
-}}
 [[Category:RCA CRTs]]
 [[Category:TruFlat CRTs]]
 [[Category:24-inch CRTs]]
-[[Category:TV/DVD Combo CRTs]]
-[[Category:TV/VCR Combo CRTs]]
 [[Category:CRTs with S-Video]]
